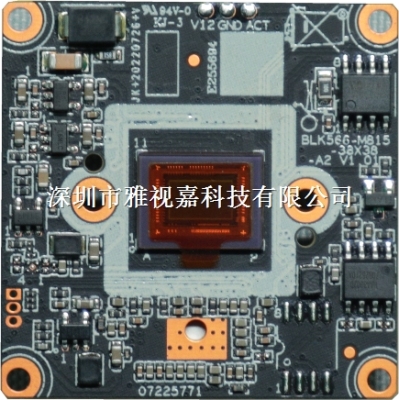

| ? | Model | IVG-N8S |
| Module | System structure | Embedded RTOS,dual-core 32bit DSP(NT98566),pure hard compression ,watch dog |
| ? | Sensor | 8.0M 1/2.8"IMX415?Black light?illumination CMOS sensor, color?0.0001Lux@F1.2, black/white 0.0001Lux@F1.2 |
| ? | Video compression | H.265AI(Compatible with H.265/H.264), support dual stream, AVI;0.1M~8Mpbs variable;1~30f/s variable |
| ? | Image output | Main stream: 8MP 3840*2160@15fps；5MP?2880*1616@25fps；4MP 2560*1440@25fps；2MP?1920*1080@25fps;?sub-stream: 800*448@25fps;? |
| ? | Shutter | 1/50(1/60) s to 1/10,000s |
| ? | Lens | N/A |
| ? | Day and night | Support IR-CUT, IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and the voltage is 3.5V-6V |
| Image | Noise reduction | Support 2D/3D |
| ? | Wide dynamic | Support digital |
| ? | Auto iris | N/A |
| Interface | Audio compression | G.711, support bidirectional talk,audio&video synchronization |
| ? | Audio interface | 1ch input, level:2Vp-p,impedance:1kΩ,support sound pick-up input;1ch?output,impedance:16Ω,30mw,support microphone |
| ? | Network interface | 1*RJ45 10/100M adaptive Ethernet port;?support RTSP/FTPDHCP/NTP/UPnP etc |
| ? | Extension interface | Support extended SD card and WiFi |
| ? | Singal interface | One photo resistance interface,one IR-CUT interface ,support photo resistance signal and IR-CUT links to IR |
| ? | PTZ | N/A |
| ? | Motor interface | N/A |
| ? | Alarm I/O | N/A |
| ? | WIFI interface | N/A（Extended support） |
| ? | Reset interface | N/A |
| ? | SD Card | N/A（Extended support） |
| Intelligence | Intelligence analysis | Supporting Face?detection，Humanoid detectionn, Vehicle detection,and supports customization of other smart functions etc. |
